Volthium 12.8V-200Ah Lithium-Self-Heating

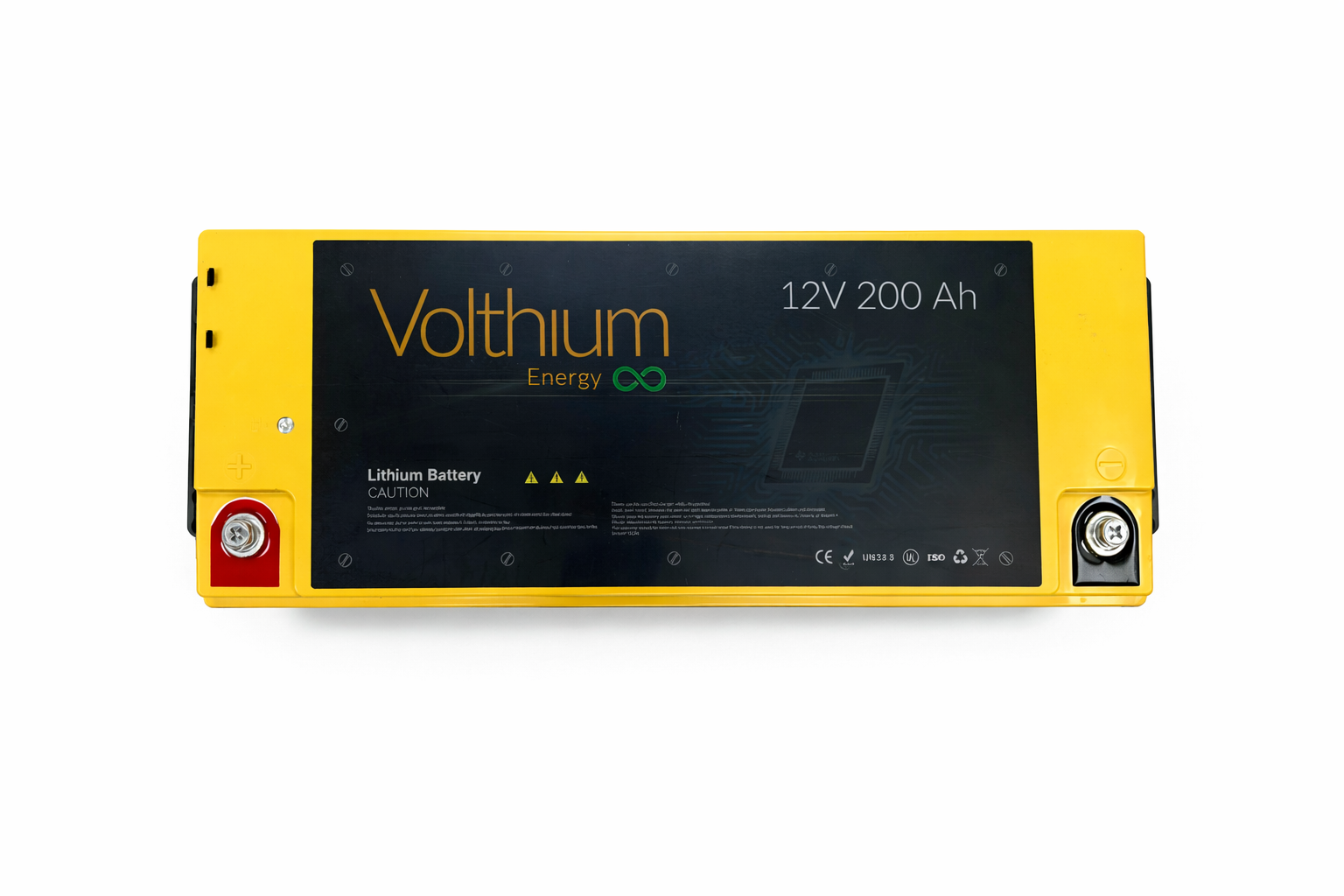

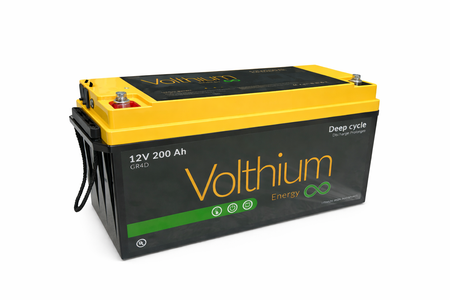

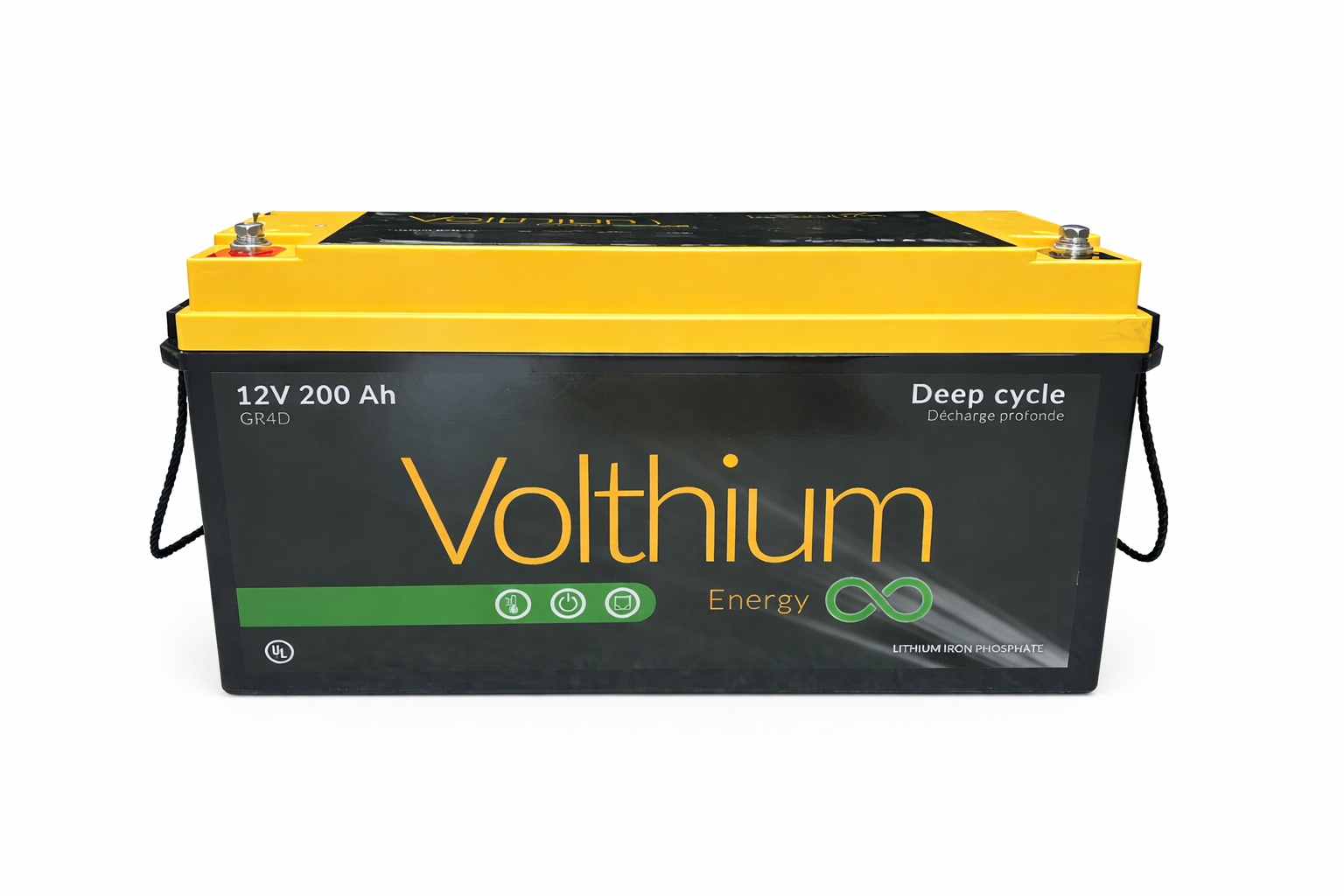

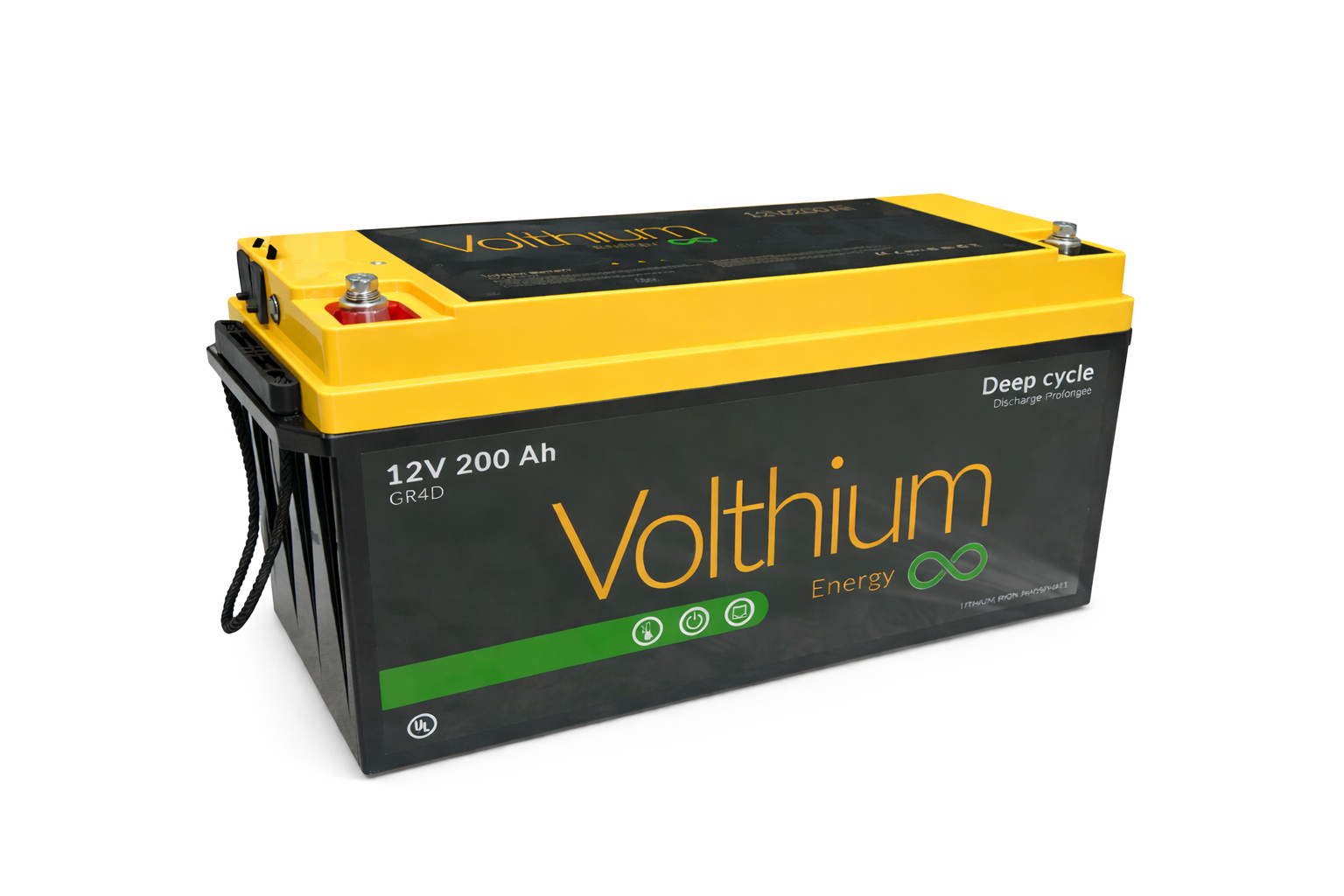

Volthium 12V 200Ah Lithium Battery – Self-Heating

Premium Power for Off-Grid & Industrial Applications

The Volthium 12V 200Ah LiFePO4 Battery is a high-performance, maintenance-free energy solution designed for cottages, RVs, trucking, and industrial use. Engineered in Canada, this advanced lithium battery delivers exceptional durability, long cycle life, and reliable performance in extreme weather conditions. Its innovative self-heating technology and smart BMS system make it ideal for energy storage systems ranging from 3kWh to 20kWh.

Key Features:

High Capacity: 200Ah – Provides powerful and consistent energy storage.

LiFePO4 Technology – Long-lasting, safe, and highly efficient lithium chemistry.

Self-Heating System – Dual heating system allows charging in extreme cold (down to -40°C with system engaged).

Ultra-Long Cycle Life – Over 6000 cycles for extended lifespan.

Advanced BMS – Intelligent battery management system developed with Texas Instruments technology.

Cold Weather Performance – Discharge capability down to -25°C.

Repairable Design – Accessible BMS chamber for maintenance and extended battery life.

Low Self-Discharge – Ideal for long-term storage applications.

Heavy-Duty Build – Vibration-resistant and designed for mobile and industrial environments.

Specifications:

Voltage: 12V.8

Capacity: 200 Ah

Battery Type: LiFePO4 (Lithium Iron Phosphate)

Weight: 53 lbs

Peak Discharge: 200A (30 seconds), 300A (3 seconds)

Cycle Life: 6000+ cycles

Expandable: Up to 4 batteries in series (max 51.2V)

Communication Ports: 2x RJ45 (RS485 / VE.CAN compatible)

Operating Temperature: Discharge to -25°C, charge to -40°C (with heating system)

Applications:

Cottages / Off-Grid Systems

RV / Motorhomes

Trucking & Transport

Solar Energy Storage (3kWh – 20kWh systems)

Industrial Power Systems

Additional Features:

External communication ports for system integration

Compatible with Bluetooth module (via Volthium HUB)

Manual and automatic heating activation options

Stainless steel cutoff button for discharge control

Canadian engineering and design

Certifications:

ABYC (Complete Assembly)

UL1642, UL1973, IEC62619, IEC62660

CSA UL9540A
