MMD12-36AH

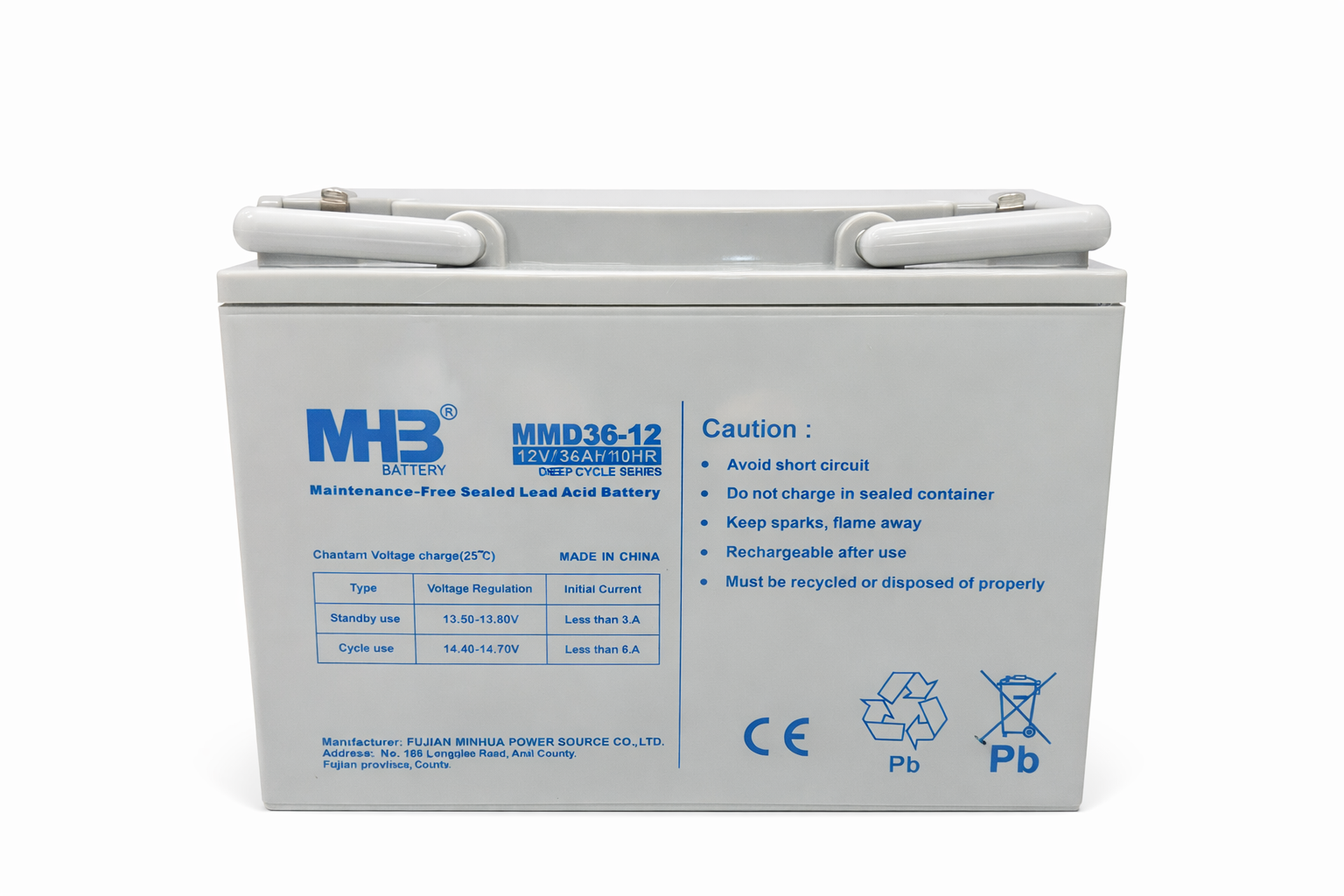

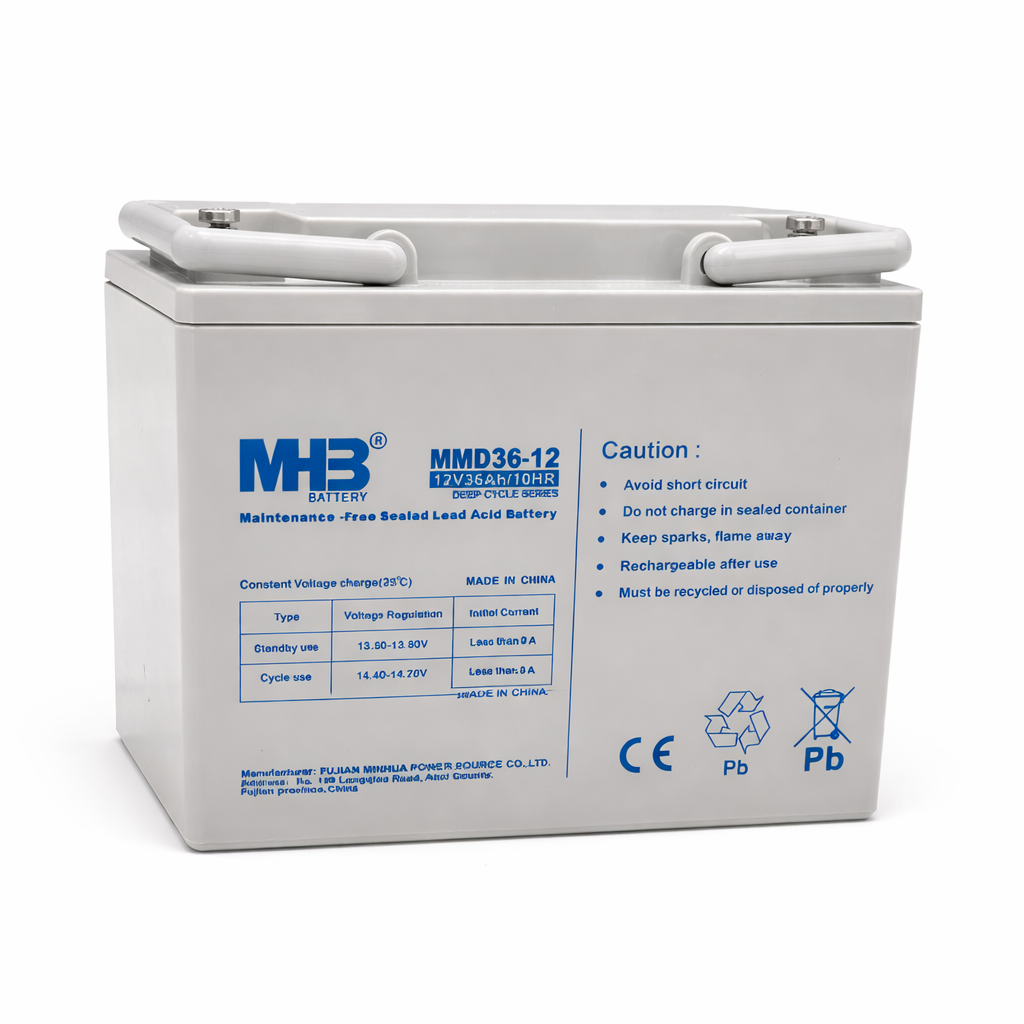

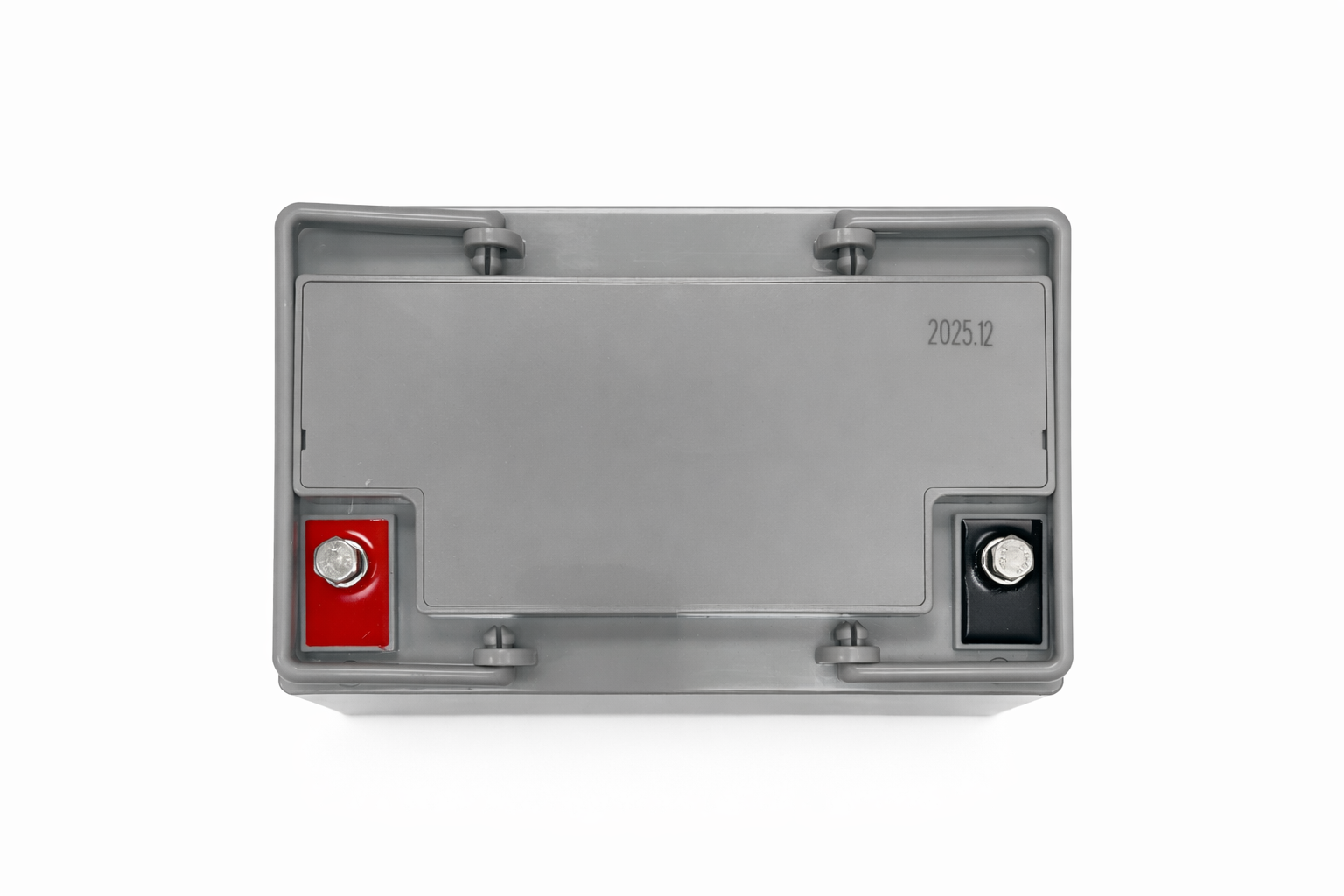

MM 36-12E 12V 36Ah Sealed Lead-Acid Battery
Reliable Backup Power for UPS and Emergency Systems

The MM 36-12E is a 12V 36Ah sealed lead-acid (SLA) battery designed for dependable backup and standby power applications. Built with AGM technology, it offers stable performance, long service life, and maintenance-free operation, making it ideal for UPS systems, telecom, and security equipment.

Key Features:

Voltage: 12V

Capacity: 36Ah

Battery Type: Sealed Lead-Acid (AGM)

Maintenance-Free: Fully sealed with no electrolyte maintenance required

High Capacity: Provides extended backup runtime

Fast Charging: Supports efficient and quick recharge

High Discharge Efficiency: Stable performance under load

Low Self-Discharge: ~2% per month at 25°C

Wide Temperature Range: Reliable in various environments

Built-in Protection: Overcharge, over-discharge, and short-circuit protection

Durable Construction: ABS casing with vibration resistance

Typical Applications:

UPS (Uninterruptible Power Supply)

Telecommunications systems

Emergency backup power

Alarm and security systems

DC power supply systems

Auto control systems

Solar and energy storage systems

Specifications:

Nominal Voltage: 12V

Capacity: 36Ah (20HR rate)

Dimensions (L x W x H): 196mm x 131mm x 161mm (Total Height: 170mm)

Weight: ~11.5 kg

Internal Resistance: ≤13.5 mΩ (fully charged @ 25°C)

Battery Type: Sealed Lead-Acid / AGM

Design Life: Up to 8 years (float use)

Self-Discharge Rate: ~2% per month @ 25°C

Charge Voltage:

Cycle Use: 14.40 – 15.00V (Max current: 8.0A)

Float Use: 13.50 – 13.80V

Operating Temperature Performance (Capacity @ 20HR):

40°C: 102%

25°C: 100%

0°C: 85%

-15°C: 65%

Construction:

Positive Plate: Lead dioxide

Negative Plate: Lead

Container & Cover: ABS

Sealant: Epoxy

Safety Valve: Rubber

Terminal: Copper/Pb

Separator: Fiber glass

Electrolyte: Sulfuric acid
