12V-100AH Group27

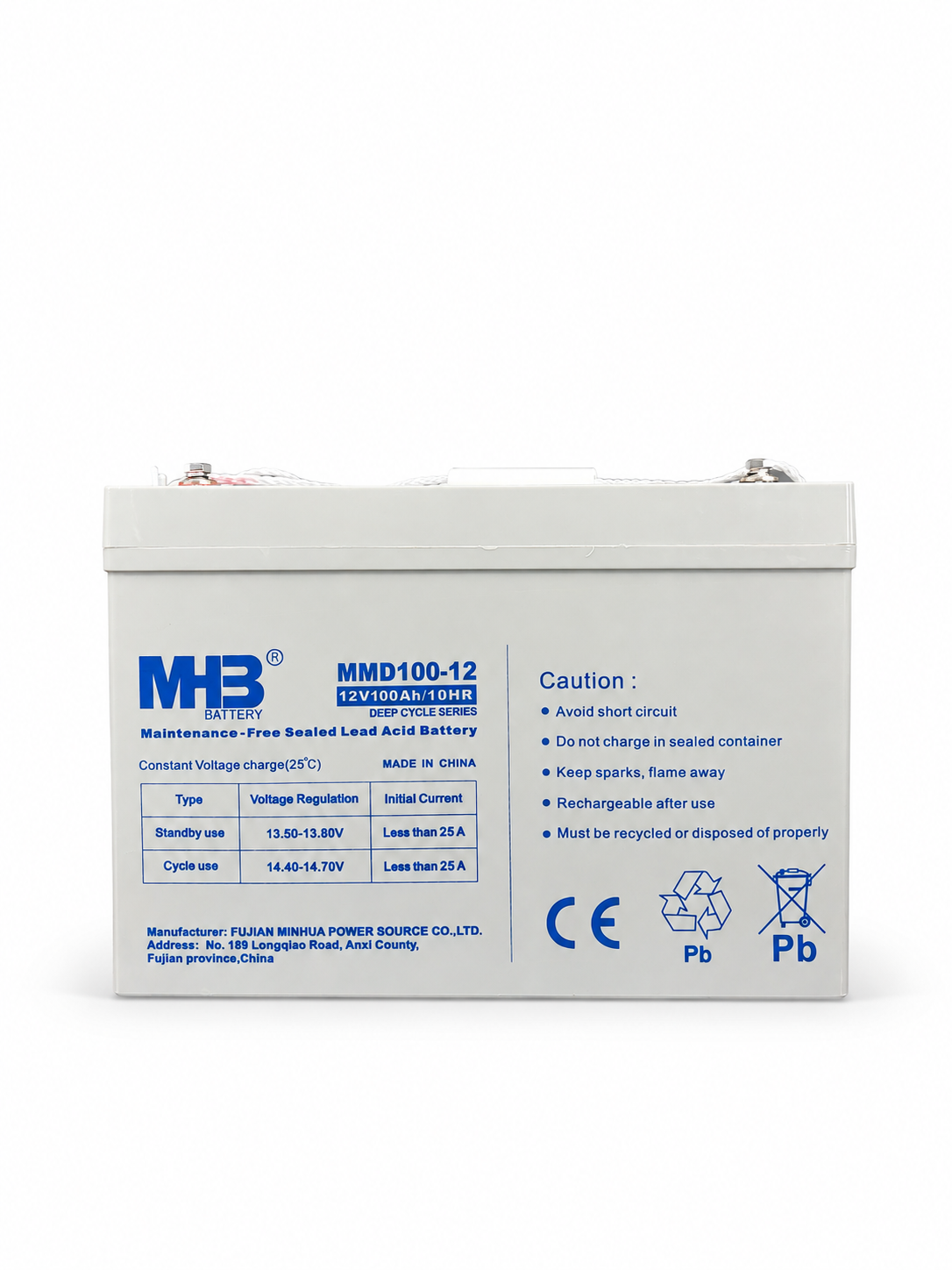

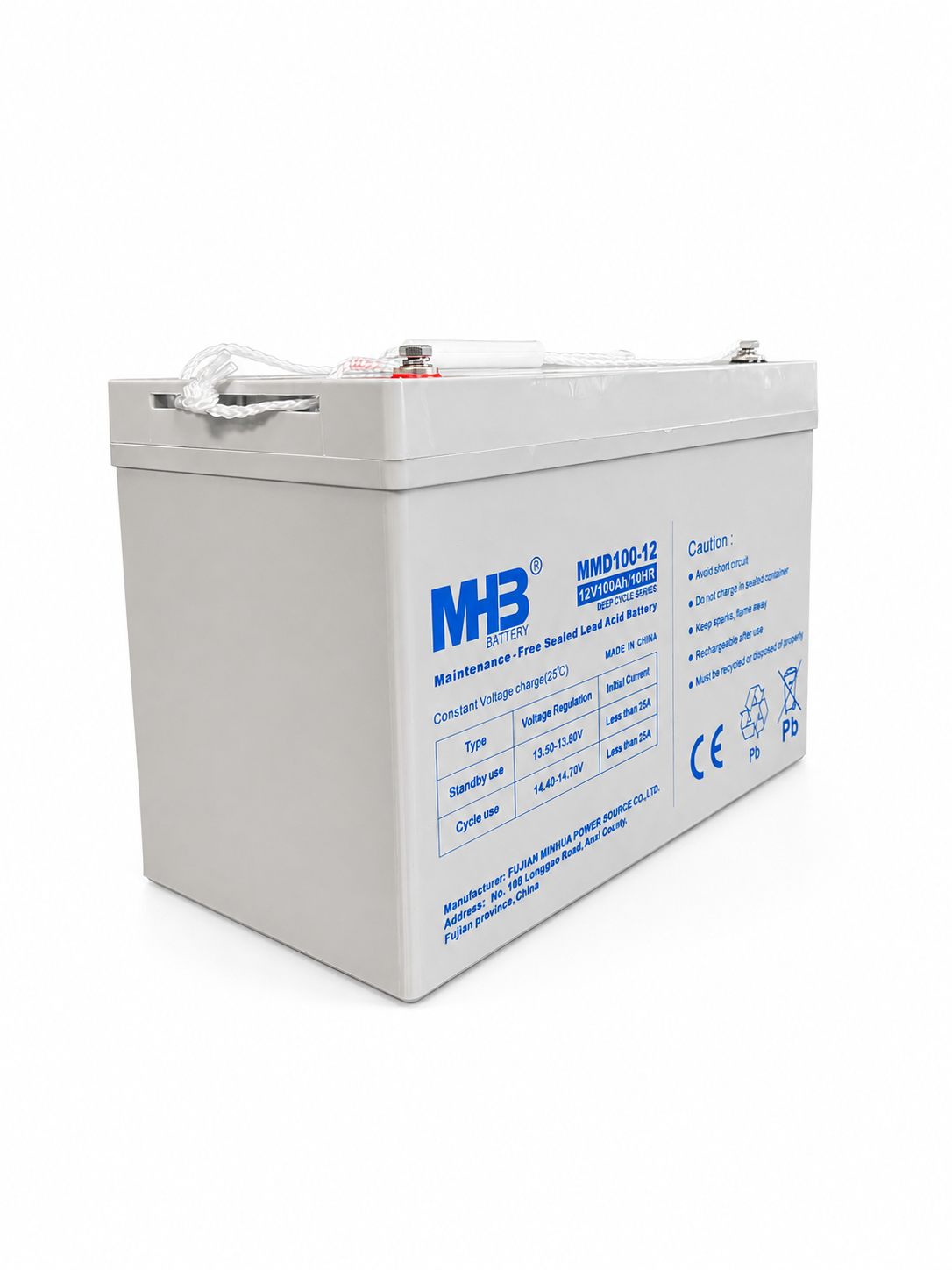

MHB MMD100-12 12V 95Ah VRLA Deep Cycle Battery

The MHB MMD100-12 is a high-performance 12V 95Ah VRLA (Valve Regulated Lead Acid) deep-cycle battery engineered for reliable standby and cyclic power applications. Featuring a completely maintenance-free design, low self-discharge, and durable internal construction, the MMD100-12 provides dependable power for commercial, industrial, telecommunications, UPS, and emergency backup systems.

Designed for a floating service life of up to 10 years, the MMD100-12 is an excellent choice for applications where long-term reliability and minimal maintenance are essential. Its deep-cycle construction supports approximately 300–400 cycles at 100% depth of discharge (DOD) under specified operating conditions.

Key Features

• 12V 95Ah VRLA deep-cycle battery
• Completely maintenance-free design
• Up to 10-year designed floating life
• Approximately 300–400 cycles at 100% DOD
• Low self-discharge — approximately 2% capacity loss per month at 25°C
• High-performance lead-acid construction
• Fiberglass separator
• Durable ABS container and cover
• Low internal resistance of ≤6.0mΩ when fully charged at 25°C
• B4 terminal configuration with M6 bolt
• Designed for reliable standby and cyclic applications
• Quality-tested for stable and dependable performance

Applications

The MHB MMD100-12 is suitable for a wide variety of backup and power-storage applications, including:

• Uninterruptible Power Supply (UPS)
• Emergency backup power systems
• Telecommunications equipment
• Electric Power Systems (EPS)
• Alarm and security systems
• Communication power supplies
• DC power supplies
• Automatic control systems

Technical Specifications

Model: MMD100-12
Battery Type: VRLA Deep Cycle
Nominal Voltage: 12V
Rated Capacity: 95.5Ah at 10-hour rate
20-Hour Capacity: 98.4Ah
10-Hour Capacity: 95.5Ah
5-Hour Capacity: 84.85Ah
1-Hour Capacity: 53.0Ah

Dimensions:
306 mm (L) × 167 mm (W) × 210 mm (H)
Total Height: 213 mm

Approx. Weight: 28.3 kg ±3%

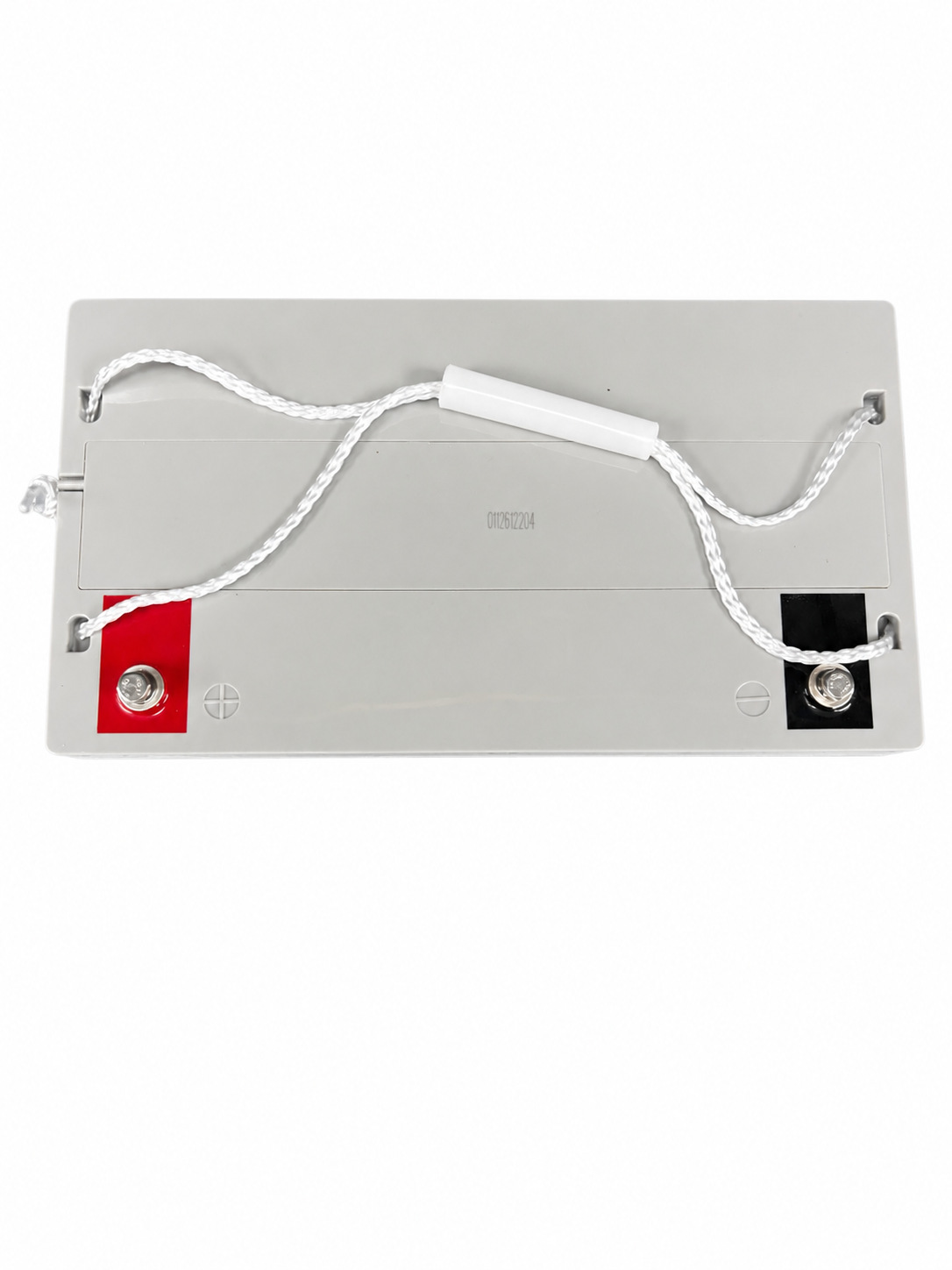

Terminal: B4 / M6 Bolt
Internal Resistance: ≤6.0mΩ at 25°C when fully charged
Self-Discharge: Approx. 2% per month at 25°C

Charging Specifications

Cycle Use:
14.4–14.7V at 25°C
Maximum charging current: 23.75A

Float / Standby Use:
13.5–13.8V at 25°C

Built for Dependable Backup Power

With its high-capacity design, maintenance-free VRLA construction, low self-discharge rate, and long designed standby life, the MHB MMD100-12 12V 95Ah provides a practical and dependable energy-storage solution for demanding backup and power-system applications.
