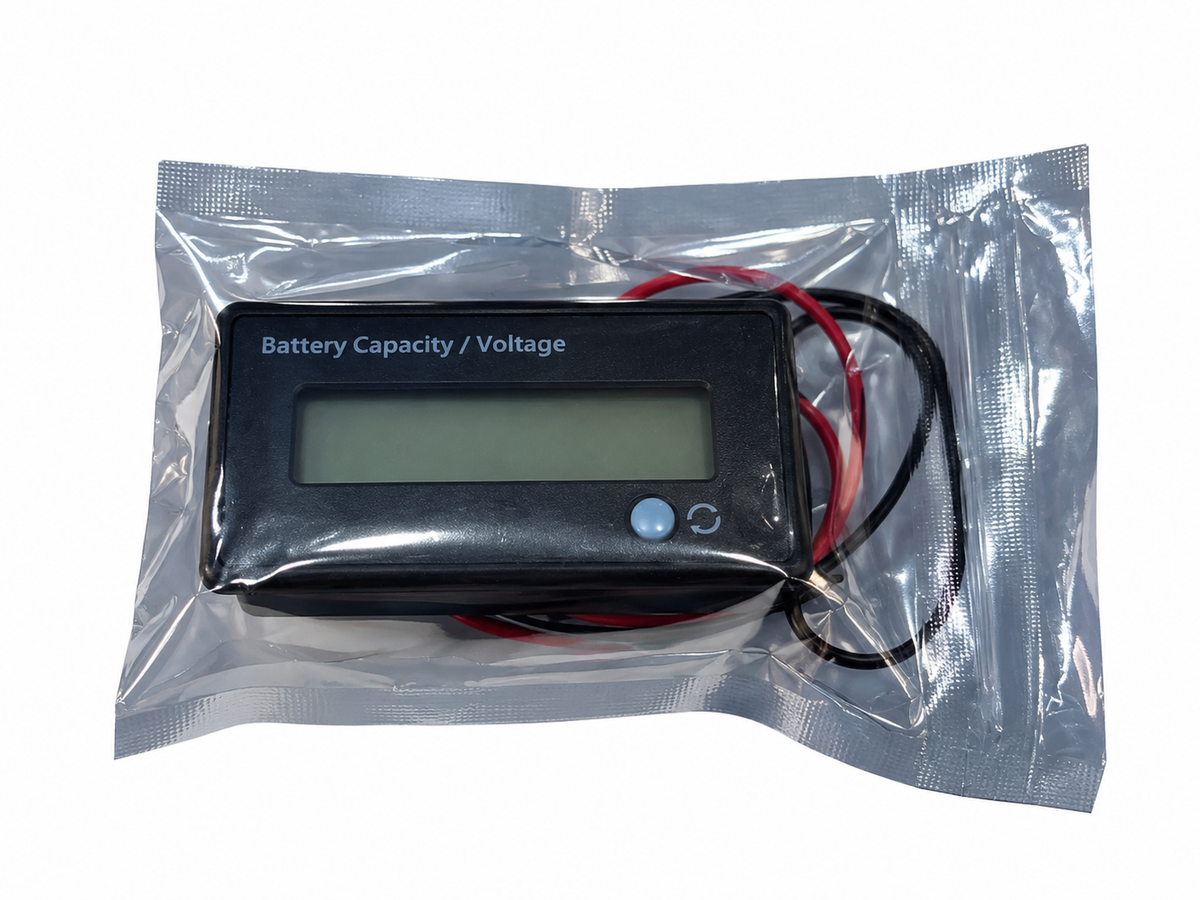

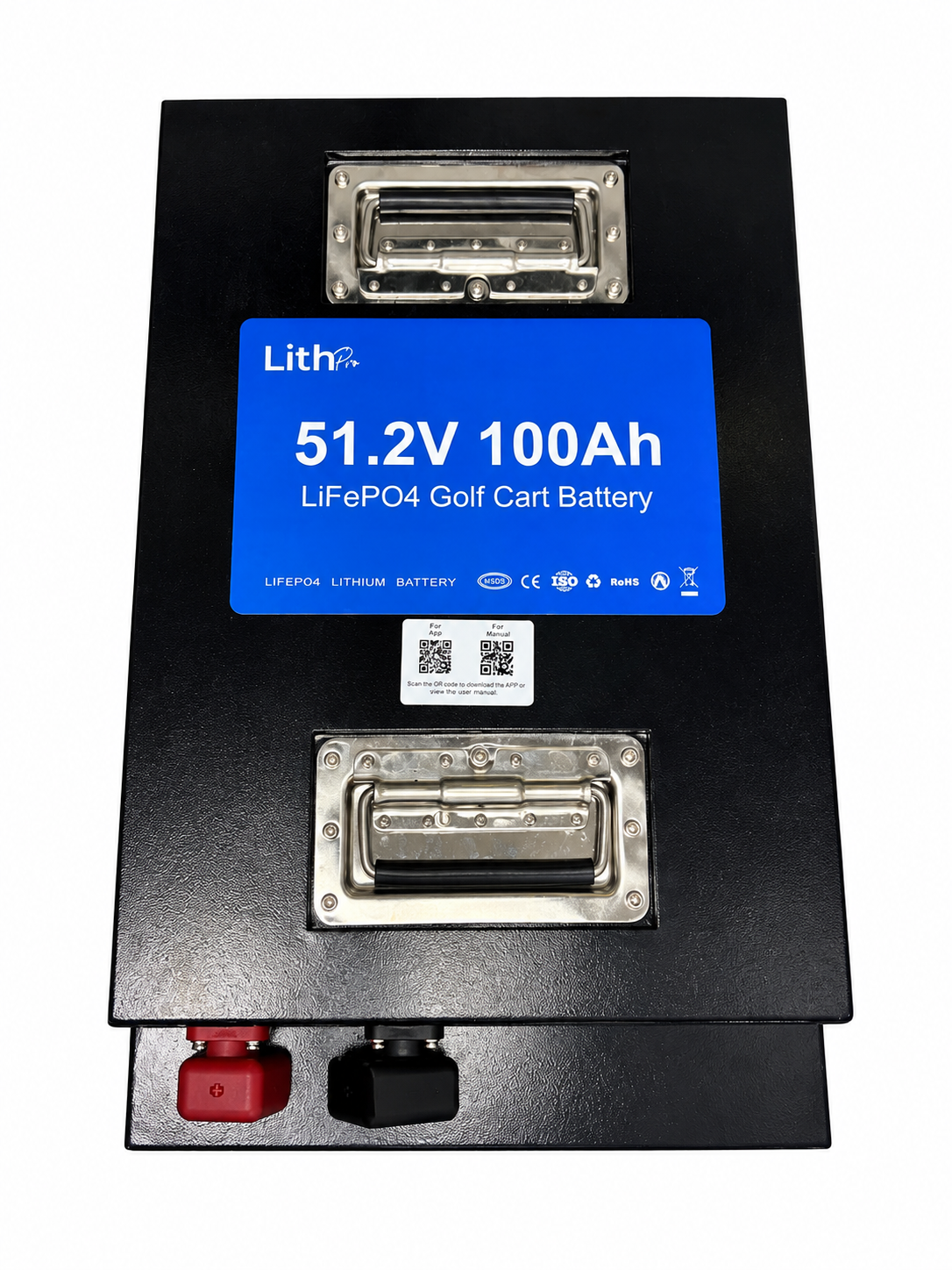

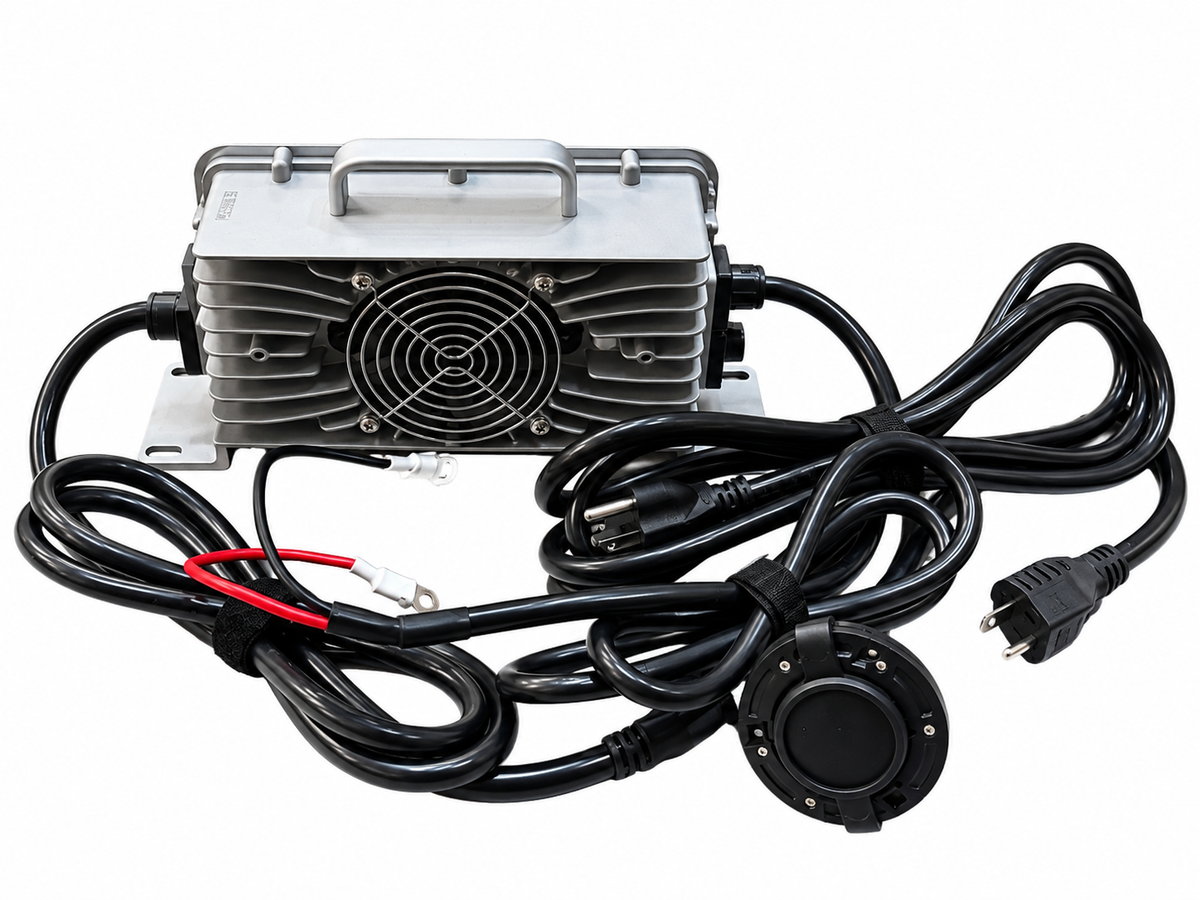

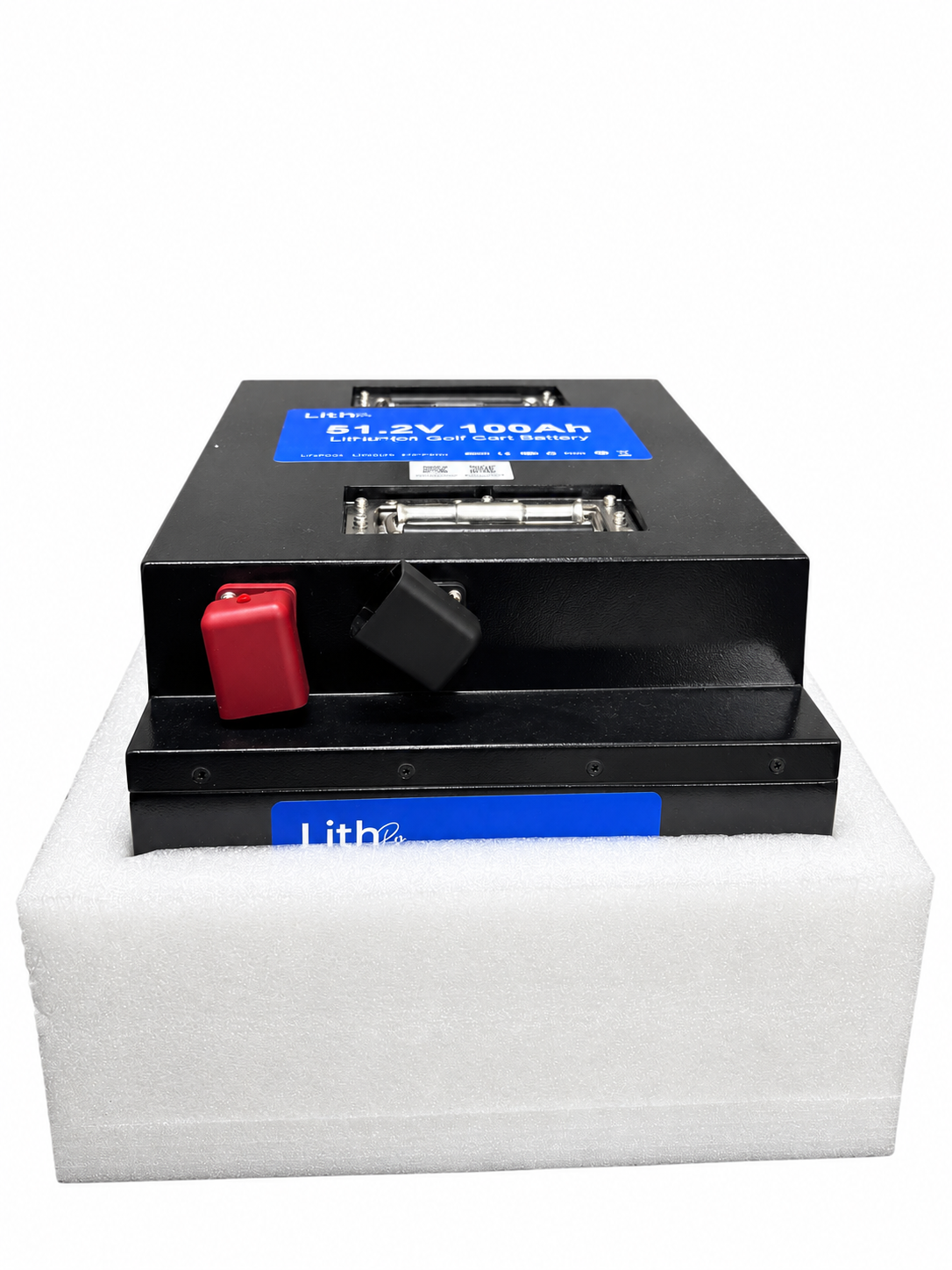

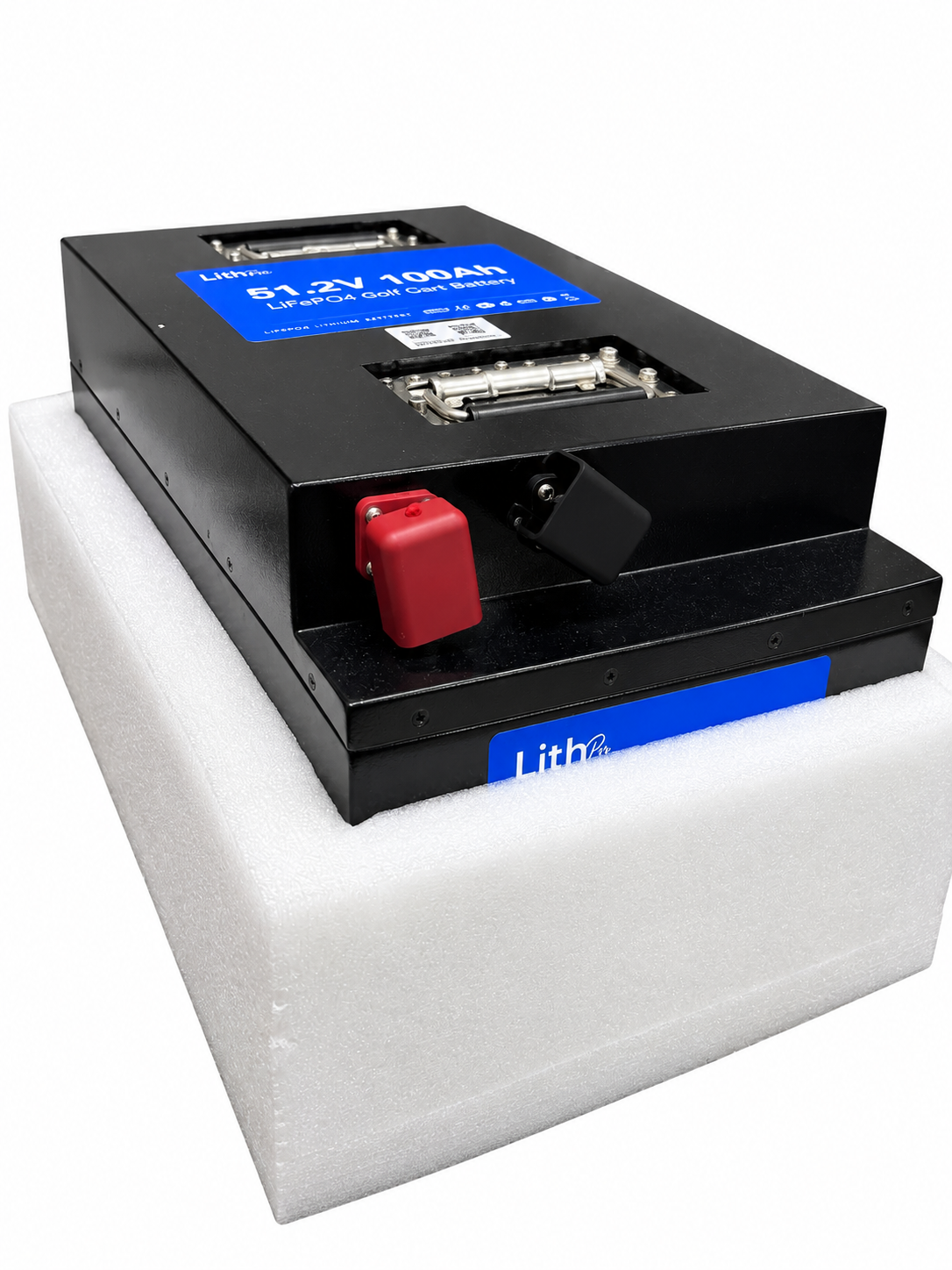

51.2V 105Ah LiFePO₄ Lithium Golf Cart Battery (Charger and LCD Display Included)

High-Capacity Lithium Iron Phosphate Energy Storage Battery

The 51.2V 105Ah LiFePO₄ Battery is a high-capacity lithium iron phosphate battery pack engineered for demanding energy-storage applications. With 5.376kWh of rated energy, high continuous discharge capability, and an integrated Battery Management System (BMS), it provides a powerful and long-lasting solution for compatible 48V-class electrical systems. Houny Datasheet LiFePO4 51.2V 1…

Built using LiFePO₄ (Lithium Iron Phosphate) technology, the battery is designed for repeated charge and discharge operation. Manufacturer testing specifies a cycle endurance of 2,000+ cycles, with the test ending when available capacity falls below 80% of rated capacity. Houny Datasheet LiFePO4 51.2V 1…

Key Features

• 51.2V nominal voltage
• 105Ah rated capacity
• 5.376kWh (5,376Wh) energy capacity
• 200A continuous discharge current
• 400A maximum instantaneous discharge current (within 1 second)
• Up to 200A maximum charging current
• ≤100A recommended charging current
• 58.4V maximum charging voltage
• Integrated BMS protection
• Cell balancing function
• Short-circuit and overcurrent protection
• 2,000+ cycle endurance
• Approximate weight: 45 kg (99.2 lb)
• Dimensions: 520 × 334 × 237 mm (20.47 × 13.15 × 9.33 in) Houny Datasheet LiFePO4 51.2V 1…

Integrated Battery Management System

The built-in BMS provides important protection and management functions, including overcharge protection, under-discharge protection, overcurrent protection, short-circuit protection and cell balancing. The system incorporates 300A ±10% overcurrent protection and a 150mA balancing current. Houny Datasheet LiFePO4 51.2V 1…

Operating Temperature

The battery is specified for charging between 0°C and 45°C (32°F–113°F) and discharging between -10°C and 65°C (14°F–149°F). Houny Datasheet LiFePO4 51.2V 1…

Specifications
