12AVR150ET

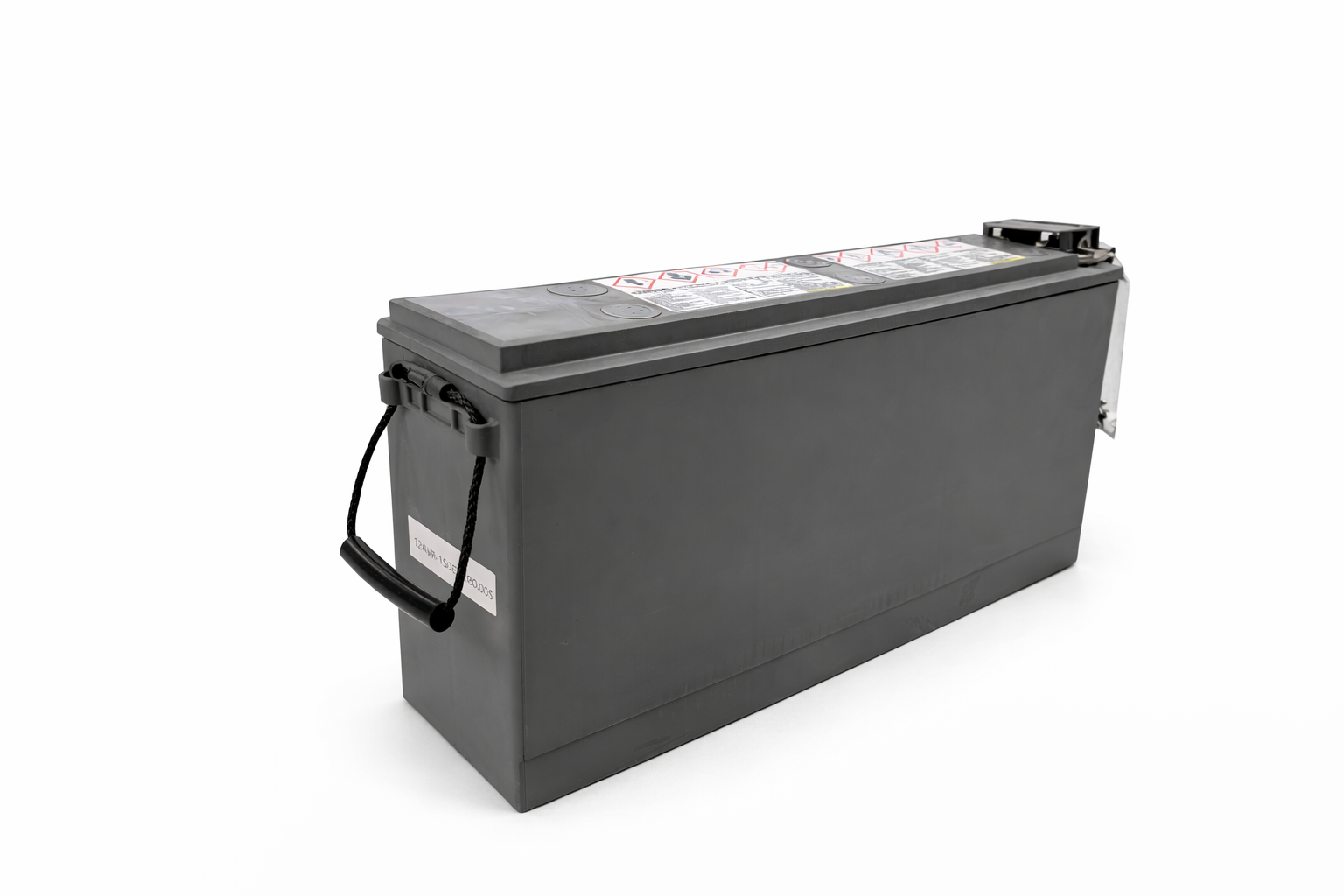

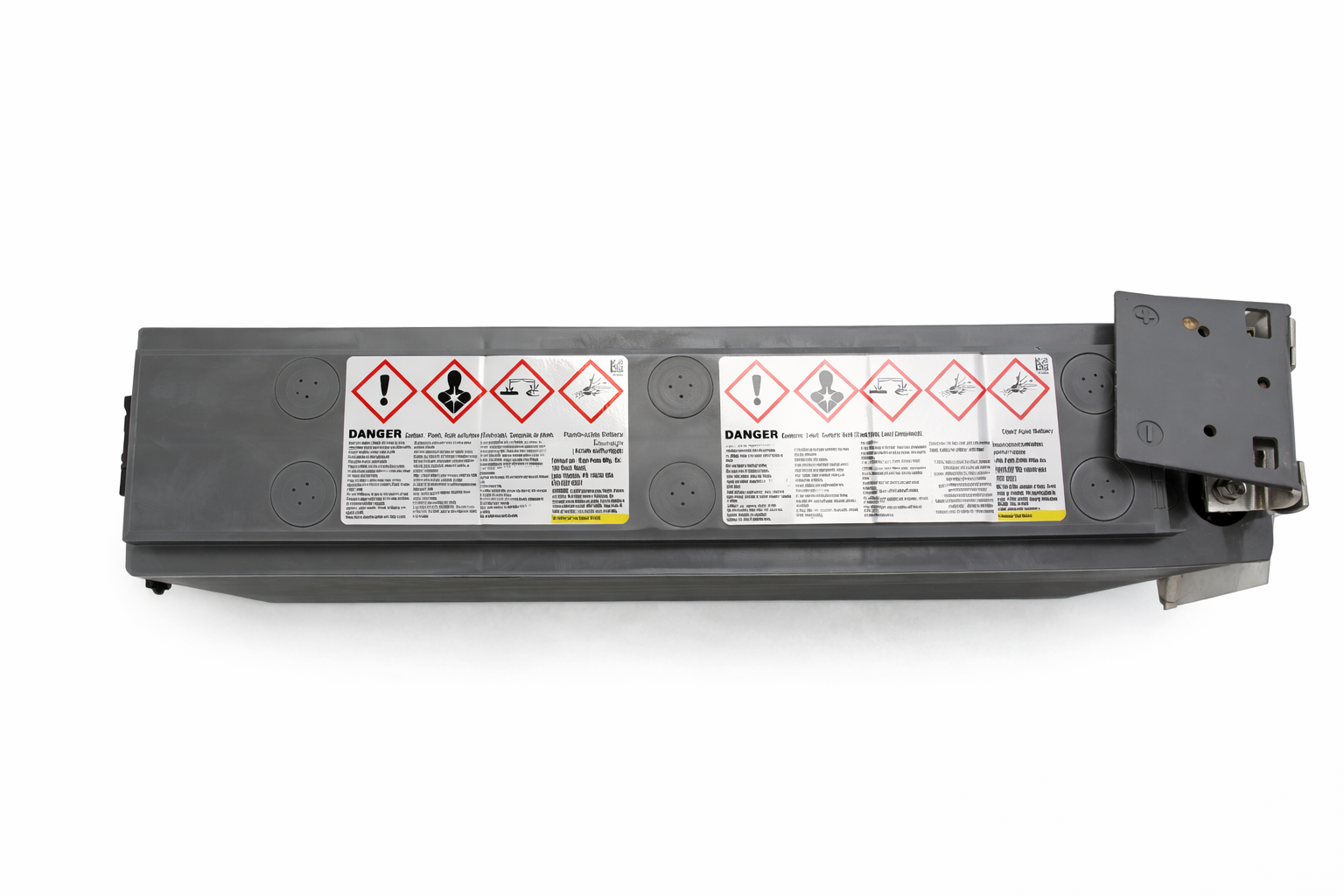

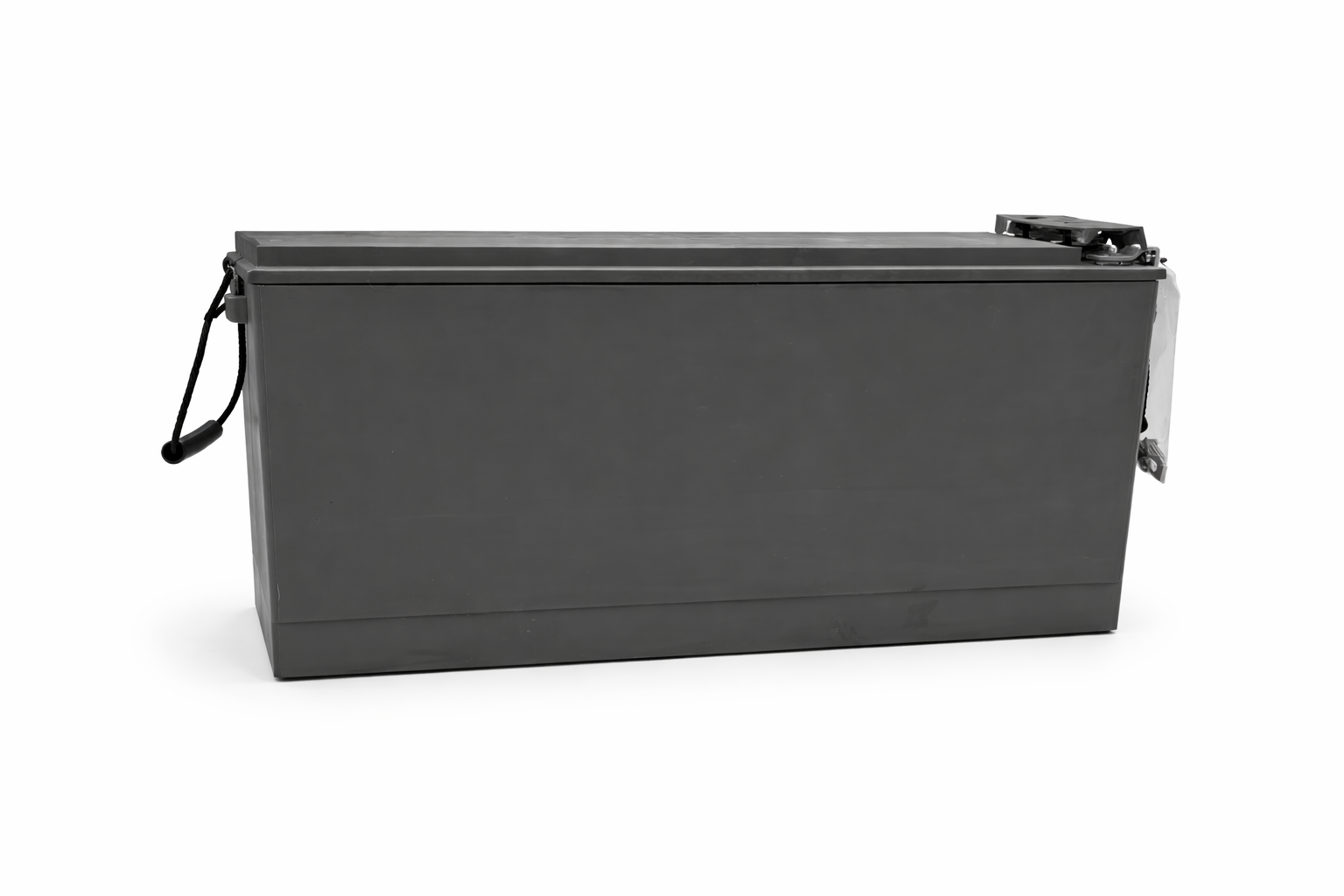

12AVR150ET AGM Battery
High-Reliability Power for Telecom and Energy Storage Systems

The 12AVR150ET is a high-performance 12V AGM (Absorbent Glass Mat) battery designed for telecom, UPS, and energy storage applications. Featuring advanced IPF® technology and robust construction, it delivers optimized power capacity, excellent cell consistency, and long-term reliability in critical backup power systems.

Key Features:

Voltage: 12V

Capacity: 150Ah (8-hour rate)

Battery Type: AGM (Absorbent Glass Mat)

Advanced Technology: Exclusive IPF® technology for improved capacity and consistency

Long Service Life: Designed for up to 10 years in float applications

Front Access Design: Easy installation and maintenance in rack systems

Durable Construction: Reinforced case meets UL 94 V-0 flame-retardant standards

Leak-Proof Design: Heat-sealed case and epoxy-sealed terminals prevent leaks

Safety Valves: Flame-arresting, low-pressure, self-sealing valves

High Quality Build: Computer-controlled manufacturing ensures consistent performance

Standards Compliance: Meets IEEE, UL, and GR4228 requirements

Typical Applications:

Telecom and communication systems

UPS and backup power systems

Data centers and network infrastructure

Energy storage systems

Industrial power backup

Specifications:

Nominal Voltage: 12V

Capacity: 150Ah (8hr rate to 1.75 VPC)

Dimensions (L x W x H): 22.17" x 4.97" x 11.63" (563 x 126 x 295.5 mm)

Weight: 106.5 lbs (48 kg)

Terminal Type: Front access, 1/4"-20 threaded insert

Battery Type: Sealed AGM Lead-Acid

Positive Plate: >98% pure lead with tin-calcium alloy

Negative Plate: Pure lead calcium alloy

Case Material: Flame-retardant polypropylene (UL 94 V-0)

Float Voltage: 13.50V ± 0.5% @ 25°C

Voltage Range: 13.42V – 13.57V

Design Life: Up to 10 years (float service @ 25°C)

Safety Vent: Low-pressure, self-sealing with flame arrestor

System Compatibility: Designed for 48V systems in 23" relay rack trays
