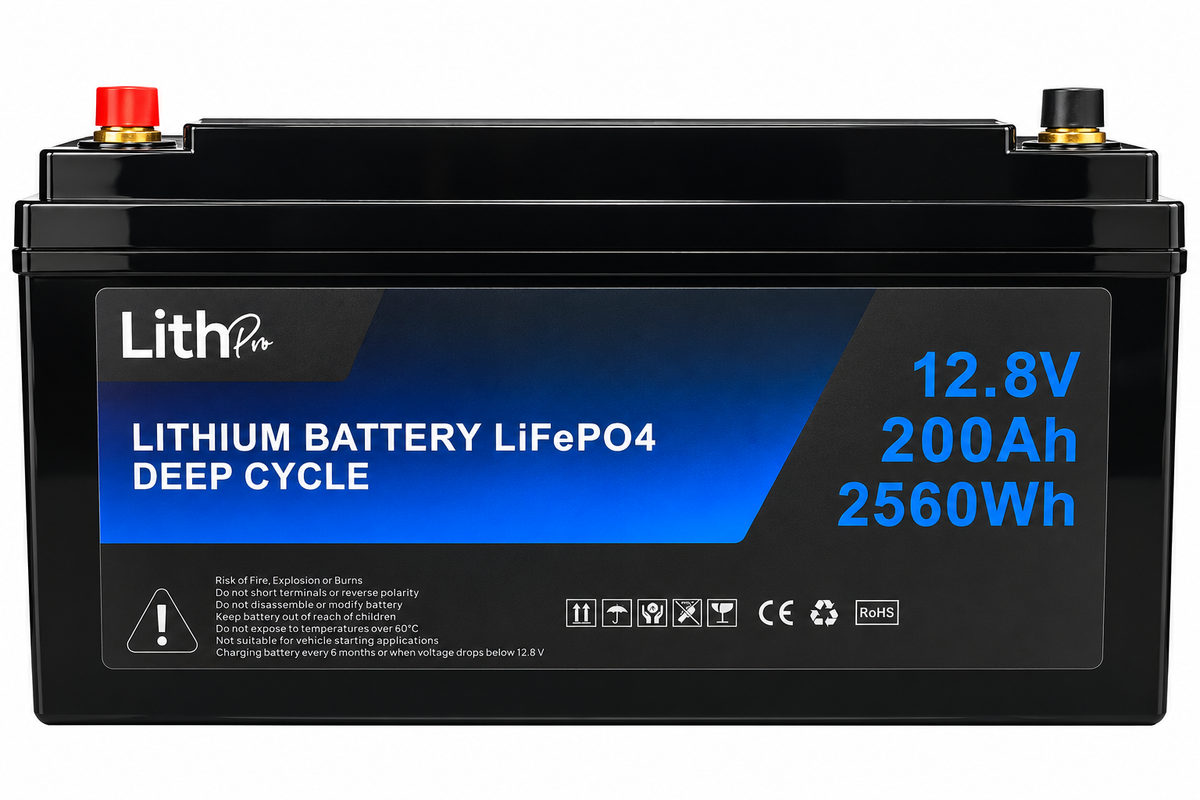

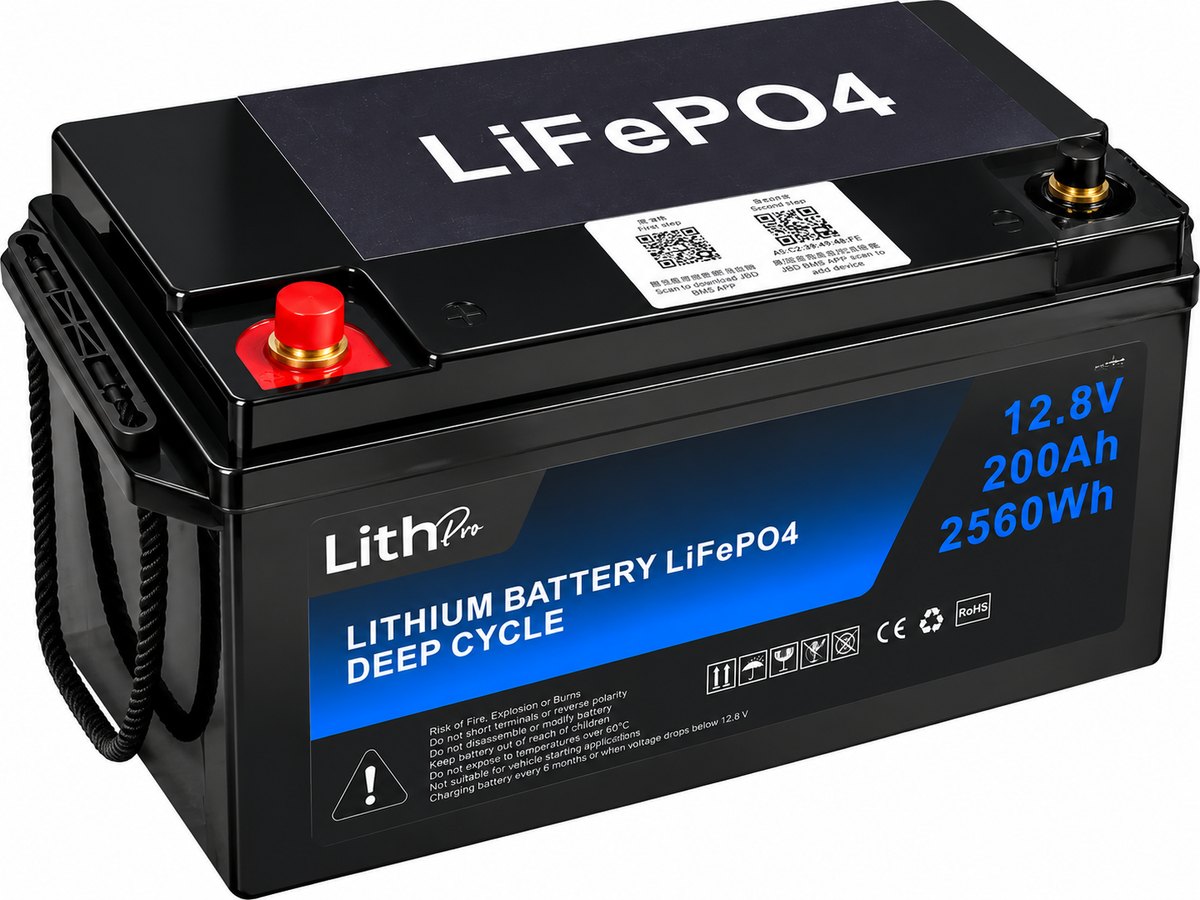

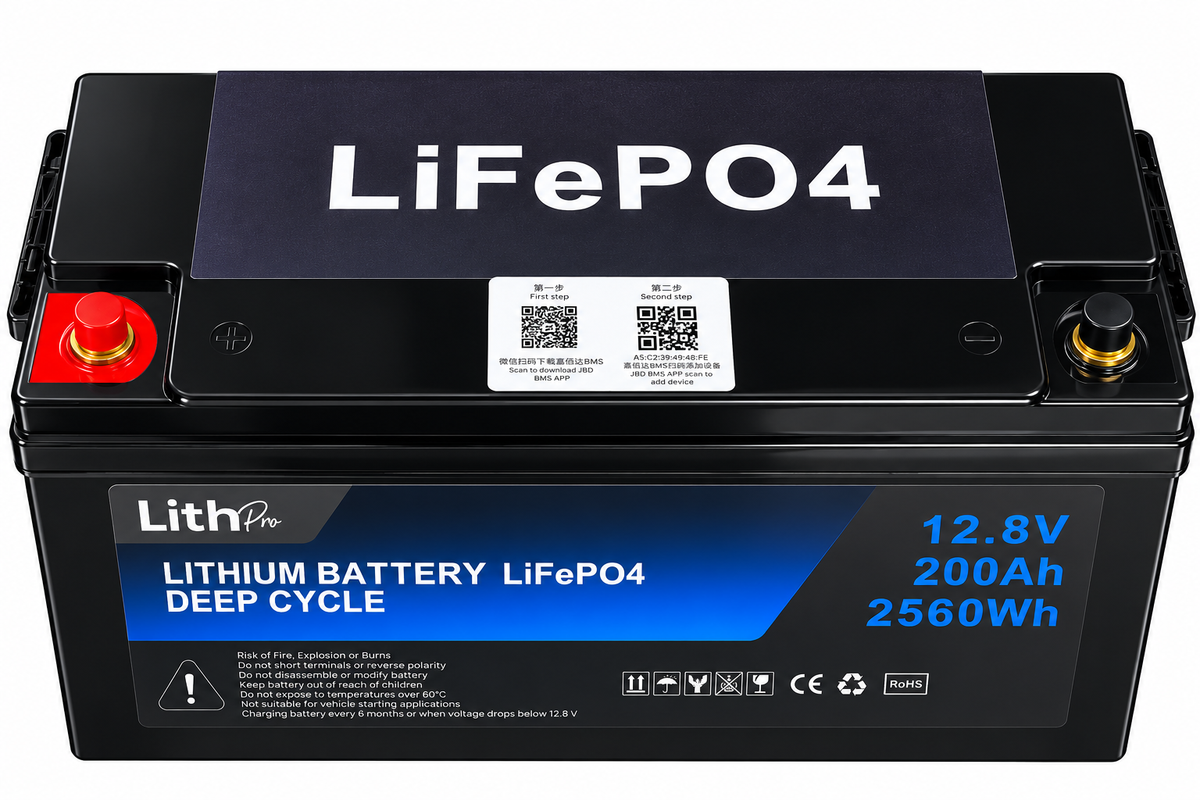

12.8V 200Ah LiFePO₄ Lithium Battery

The 12.8V 200Ah Lithium Iron Phosphate (LiFePO₄) Battery is a high-capacity energy storage solution designed to deliver reliable power for a wide range of compatible 12V applications. With a rated capacity of 200Ah, it provides substantial energy storage for solar systems, RVs, marine applications, and off-grid power installations.

Built with advanced LiFePO₄ battery chemistry, this battery offers excellent thermal stability, efficient energy storage, and long cycle-life potential. Its 200A Battery Management System (BMS) provides short-circuit and overcurrent protection to support safe and dependable operation.

With a maximum charge current of 100A, continuous discharge capability of 200A, and peak discharge capability of 400A for up to 30 seconds, this battery is designed to support demanding power requirements.

Key Features

• Nominal Voltage: 12.8V
• Rated Capacity: 200Ah
• Energy Capacity: 2,560Wh (2.56kWh), calculated from nominal voltage and capacity
• Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
• Maximum Charge Current: 100A
• Continuous Discharge Current: 200A
• Peak Discharge Current: 400A for 30 seconds
• Battery Management System: 200A BMS
• BMS Overcurrent Cutoff: 600 ± 50A
• Short-Circuit Protection: Yes
• Dimensions (L × W × H): 483 × 170 × 240 mm
• Weight: Approximately 17.6 kg
• Model: LFP12.8-200 DC

Recommended Applications

• Solar energy storage systems
• RVs, caravans, and motorhomes
• Marine and boating power systems
• Off-grid power installations
• Compatible 12V inverter systems
• Backup power applications
